US HVAC Wiring

Dougal McMillan shared this question ago

Need Answer

Is there a diagram of a 5 wire HVAC connection to a Zipatile? (Red=Power, Yellow=Cool. Blue=Unswitched power, While =Heat, Green=Fan)

The same question

Replies (7)

David Pritchard ●

Is this for a reversible heat pump for A/C and heating?

Reply URL

Dougal McMillan ●

No, just a regular forced air system. Typical in the US.

Reply URL

David Pritchard ●

OK I now realise that the Zipatile has a built-in thermostat - didn't know that! (I just have the Zipabox).

I found this:

https://community.zipato.com/topic/can-zipatile-replace-a-dumb-wired-thermostat-with-its-buit-in-relays

It sounds as if a 5-wire system requires an external thermostat.

Reply URL

Dougal McMillan ●

Thanks, however this thread is not clear to me either. The Zipatile theoretically replaces a thermostat, but the wiring is not specified. If Zipato is serious about the US market, this use case will come up again and again.

Reply URL

David Pritchard ●

Yes, there's a persistent problem of thin or non-existent documentation. I guess the solution is "open a ticket". They're usually pretty good at answering questions.

Reply URL

Dougal McMillan ●

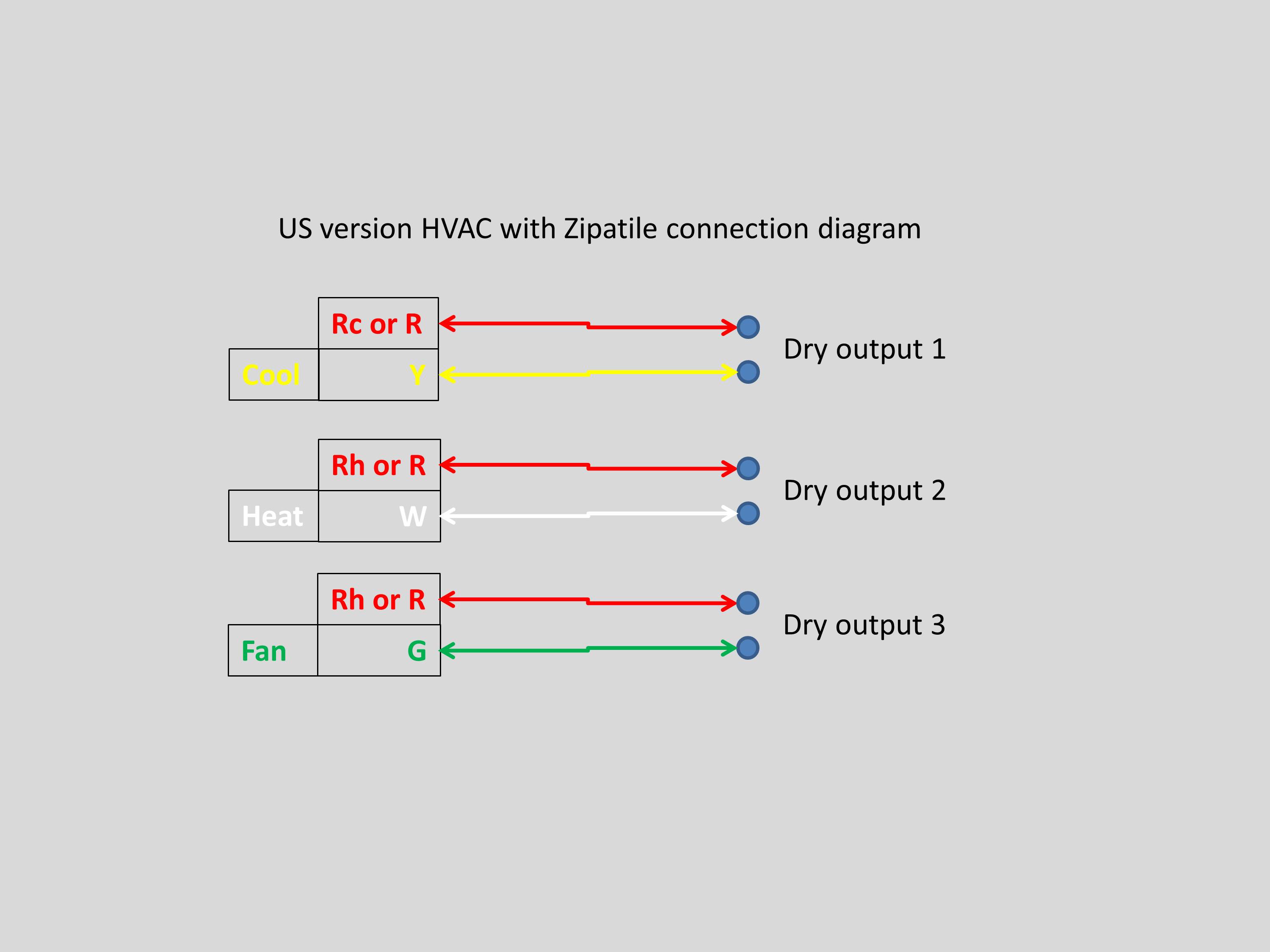

I recieved this by opening a ticket in case someone else is looking

Files:

Reply URL

David Pritchard ●

It would probably save them support time to make this stuff available on the web. :-)

Reply URL

Adrian Van Der Heijden ●

agreed David, thanks Dougal for the info

URL

Adrian Van Der Heijden ●

agreed David, thanks Dougal for the info.

Also a note for Zipatile users, not sure if this is fixed on new version or firmware updates, but the inbuilt relays are already pre programmed into the included virtual Thermostat. Found this out when a client returned a Zipatile as we thought it was faulty. Turns out the thermostat was activating the relay that he had a lighting circuit attached to. Couldn't understand why the lights would turn on/off randomly.

Again no documentation to forwarn us

URL

Attila Hajdu ●

Adrian. This will not change. Imagine that zipatile out of the box acts as a smart thermostat. if it would not be geared up for this relay, it will not work out of the box.

URL
