Paradox alarm and Zipatile
Need Answer
Hello,
Which are currently the possibilities to connect a Paradox (Evo 192) to a Zipatile?
Which kind of actions/information can be executed/seen on Zipatile? Arm, Disarm, Home Arm, Zones status, etc...
Thanks.
The same question
No connection
Real-time notifications may not work
The implementation is done and it is released with 1.2.21 firmware. The WIZNet board for which the implementation should work is WIZ110SR. You need to load settings to the WIZNet first using WIZ100SR/105SR/110SR Configuration Tool. The parameters you have to enter are:
Network Tab - IP Config Method: Static
- Operation Mode: Mixed
Serial Tab - Speed: 9600
- DataBit: 8
- Parity: None
- Stop Bit: 1
- Flow: None
Option Tab - Inactivity Time: 600
- Data Packing Condition - Time: 100
- Size: 255
The rules should work for arm/disarm event as well as for zone TRIPPED event. Not recognizing the user who disrmed. Only the alarm pin, IP address and port have to be entered in device settings after discovery for zones is done.
The implementation is done and it is released with 1.2.21 firmware. The WIZNet board for which the implementation should work is WIZ110SR. You need to load settings to the WIZNet first using WIZ100SR/105SR/110SR Configuration Tool. The parameters you have to enter are:
Network Tab - IP Config Method: Static
- Operation Mode: Mixed
Serial Tab - Speed: 9600
- DataBit: 8
- Parity: None
- Stop Bit: 1
- Flow: None
Option Tab - Inactivity Time: 600
- Data Packing Condition - Time: 100
- Size: 255
The rules should work for arm/disarm event as well as for zone TRIPPED event. Not recognizing the user who disrmed. Only the alarm pin, IP address and port have to be entered in device settings after discovery for zones is done.
Currently, you can connect your Paradox Alarm System to Zipatile using PRT 3 through USB.
In one of the next beta firmware releases, you will be able to connect it via IP using WIZNet RS232-to-IP adapter.
You can arm the system (ARM AWAY or ARM HOME) and disarm it. You can see partion and all the zones in the device browser after discovery. You can see when the certain zone is tripped and you have the ability to bypass it.
Currently, you can connect your Paradox Alarm System to Zipatile using PRT 3 through USB.
In one of the next beta firmware releases, you will be able to connect it via IP using WIZNet RS232-to-IP adapter.
You can arm the system (ARM AWAY or ARM HOME) and disarm it. You can see partion and all the zones in the device browser after discovery. You can see when the certain zone is tripped and you have the ability to bypass it.
You need PRT3.
You need PRT3.
Hello all,
I would start with the integration of my Paradox and Zipatile on the next few days. I would like to start by connecting directly the alarm panel to my Zipatile. Afterwards will introduce the Wiznet.
As I read on the forum there are two options on the Paradox PRT3 side: DB9 cable or USB. On the Zipatile side there is only USB.
What do you recommend? For the final solution I have about 7m from the alarm central to the Zipatile, so I suppose USB is not recommended.
I appreciate your feedback.
Hello all,
I would start with the integration of my Paradox and Zipatile on the next few days. I would like to start by connecting directly the alarm panel to my Zipatile. Afterwards will introduce the Wiznet.
As I read on the forum there are two options on the Paradox PRT3 side: DB9 cable or USB. On the Zipatile side there is only USB.
What do you recommend? For the final solution I have about 7m from the alarm central to the Zipatile, so I suppose USB is not recommended.
I appreciate your feedback.
Over 3m it should not be a problem with a voltage drop of 5V. It is not for charging but for communication. Please keep us posted on your progress.
Over 3m it should not be a problem with a voltage drop of 5V. It is not for charging but for communication. Please keep us posted on your progress.
Attila it's 7m. So you recommend USB connection from Paradox PRT3 to micro USB to Zipatile. Correct?
Attila it's 7m. So you recommend USB connection from Paradox PRT3 to micro USB to Zipatile. Correct?
Hi Pablo. Read the post above. From what I can understand this connection is not direct wired connection between 2 devices, but IP based. So the Zipatile should communicate with the Paradox alarm via the WIZ110SR Wiznet board over the local LAN network. http://www.wiznet.io/product-item/wiz110sr/
Hi Pablo. Read the post above. From what I can understand this connection is not direct wired connection between 2 devices, but IP based. So the Zipatile should communicate with the Paradox alarm via the WIZ110SR Wiznet board over the local LAN network. http://www.wiznet.io/product-item/wiz110sr/
Hi Attila,
Yes, but according Zeljko "Currently, you can connect your Paradox Alarm System to Zipatile using PRT 3 through USB." (https://community.zipato.com/topic/paradox-alarm-and-zipatile#comment-32494).
As I explained, I preffer to test it step by step, first with direct connection to avoid any problems caused by Wiznet configuration (I also have it already, but I am waiting for PRT3). Afterwards will introduce the Wiznet.
I will start with the USB from the Paradox PRT3 to the micro USB to the Zipatile.
Will keep you informed.
Hi Attila,
Yes, but according Zeljko "Currently, you can connect your Paradox Alarm System to Zipatile using PRT 3 through USB." (https://community.zipato.com/topic/paradox-alarm-and-zipatile#comment-32494).
As I explained, I preffer to test it step by step, first with direct connection to avoid any problems caused by Wiznet configuration (I also have it already, but I am waiting for PRT3). Afterwards will introduce the Wiznet.
I will start with the USB from the Paradox PRT3 to the micro USB to the Zipatile.
Will keep you informed.
Well Pablo. We all thank you for any information you will provide. This will be gold value.
Please also consider information on the easiness of integration - if you experience lot or only few unexpected things white connecting these devices. Many thanks.
Well Pablo. We all thank you for any information you will provide. This will be gold value.
Please also consider information on the easiness of integration - if you experience lot or only few unexpected things white connecting these devices. Many thanks.
I successfully managed to have Zipatile connected to Paradox system using simple wiring techniques (Not serial connection). So this post may help those who are interested in doing simple Arm, Disarm from Zipatile to Paradox system and send Alarm signal from Paradox to Zipatile
In my case, I am using Paradox Panel SP7000 and keypad K32
All we need is:
-A few wires
-Programming Paradox
-Creating conditions in rule creator for Zipatile
The concept is basically setting 2 zones (contact points) on Paradox panel as connection to a momentary switches (one is to arm and the other is to disarm). And those zones are then hardwired to the 2 relays on Zipatile.
And to send alarm signal from Paradox to Zipatile we need to program a PGM (output point) on Paradox to turn on whenever an alarm is triggered sending a signal to the DRY INPUT point on Zipatile.
Wiring

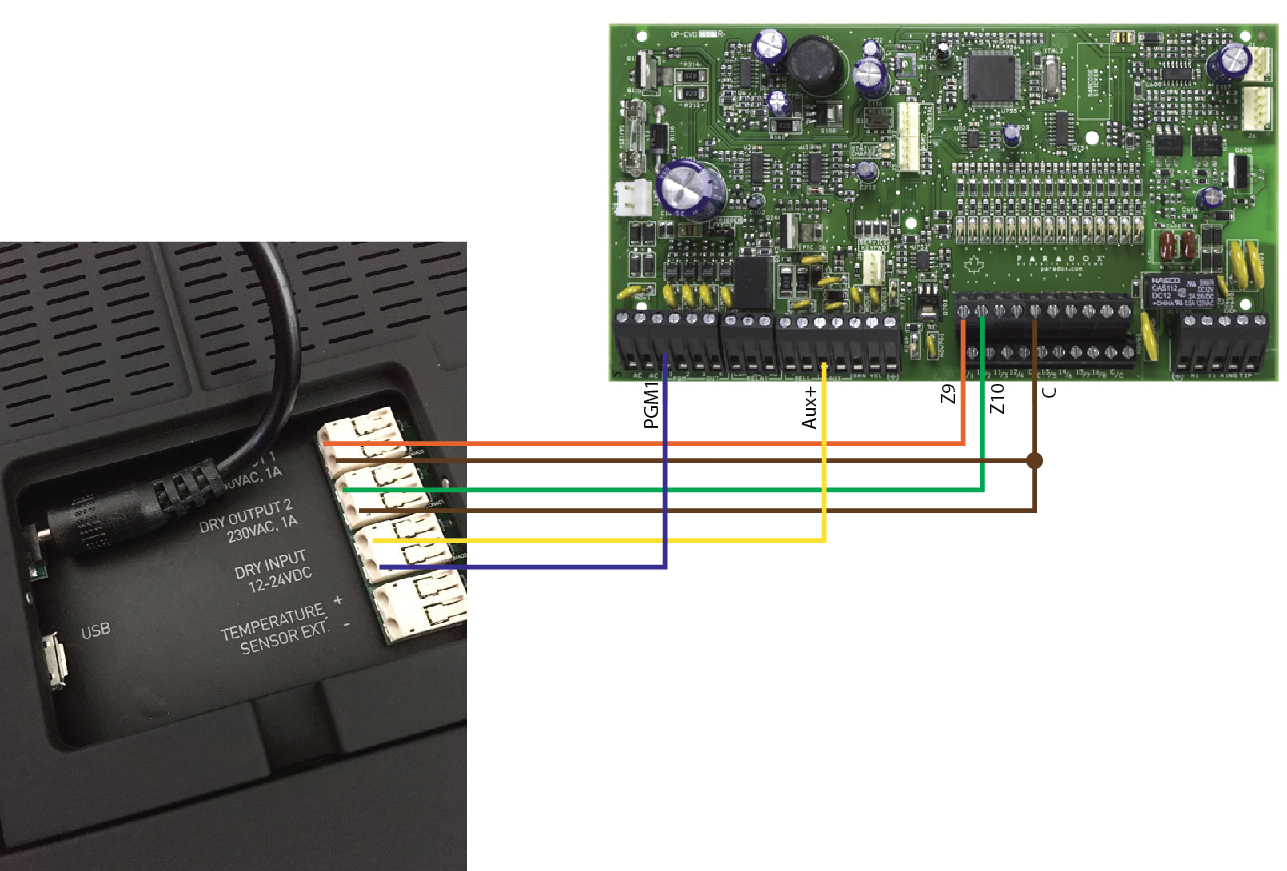

Refer to the attached Wiring image (Wiring.png)
Z9 and C on Paradox are connected to Relay 2 (at the very top).
Z10 and C on Paradox are connected to Relay 1 (second one from the top).
PGM 1 and AUX+ are connected to DRY INPUT 12-24VDC on Zipatile (third one)
Note: you can use any other zone PGM points. I just happen to use Z9, Z10 for input and PGM1 for output.
Programming Paradox
I reckon all paradox models use the same steps below but if you face issues in this section, follow the programming guide specific to your Paradox model.
Installer Mode > select Z9 > defined zone as Keyswitch Momentary > set condition to Arm Only
Installer Mode > select Z10 > defined zone as Keyswitch Momentary > set condition to Disarm
Installer Mode > select PGM1 > PGM type = Follow Alarm > PGM delay 1 sec (it can be 5 seconds)
Rule Creator

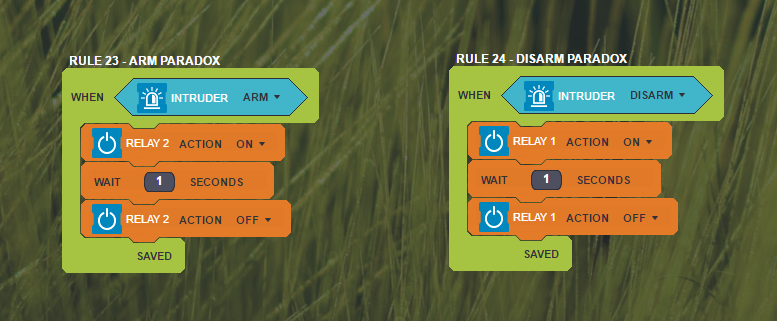

The rule creator conditions are attached here (arm & disarm.png) (Alarm.png)
When Zipatile is disarmed - Relay 1 is on (shorted/closed) for 1 second then turns off
When Zipatile is armed - Relay 2 is on (shorted/closed) for 1 second then turns off

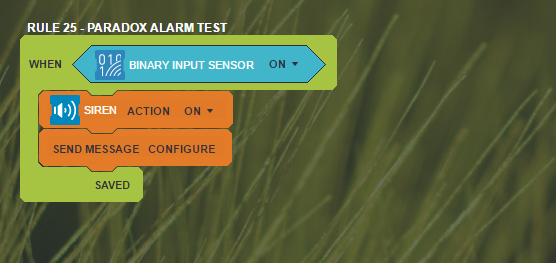

When Binary input is on (high/12VDC) trigger alarm and send a message a push message to phone (of course it can be whatever you want it to be)
Sync and refresh and you should be good to go.
Hope this helps,
Peace
I successfully managed to have Zipatile connected to Paradox system using simple wiring techniques (Not serial connection). So this post may help those who are interested in doing simple Arm, Disarm from Zipatile to Paradox system and send Alarm signal from Paradox to Zipatile
In my case, I am using Paradox Panel SP7000 and keypad K32
All we need is:
-A few wires
-Programming Paradox
-Creating conditions in rule creator for Zipatile
The concept is basically setting 2 zones (contact points) on Paradox panel as connection to a momentary switches (one is to arm and the other is to disarm). And those zones are then hardwired to the 2 relays on Zipatile.
And to send alarm signal from Paradox to Zipatile we need to program a PGM (output point) on Paradox to turn on whenever an alarm is triggered sending a signal to the DRY INPUT point on Zipatile.
Wiring
Refer to the attached Wiring image (Wiring.png)
Z9 and C on Paradox are connected to Relay 2 (at the very top).
Z10 and C on Paradox are connected to Relay 1 (second one from the top).
PGM 1 and AUX+ are connected to DRY INPUT 12-24VDC on Zipatile (third one)
Note: you can use any other zone PGM points. I just happen to use Z9, Z10 for input and PGM1 for output.
Programming Paradox
I reckon all paradox models use the same steps below but if you face issues in this section, follow the programming guide specific to your Paradox model.
Installer Mode > select Z9 > defined zone as Keyswitch Momentary > set condition to Arm Only
Installer Mode > select Z10 > defined zone as Keyswitch Momentary > set condition to Disarm
Installer Mode > select PGM1 > PGM type = Follow Alarm > PGM delay 1 sec (it can be 5 seconds)
Rule Creator
The rule creator conditions are attached here (arm & disarm.png) (Alarm.png)
When Zipatile is disarmed - Relay 1 is on (shorted/closed) for 1 second then turns off
When Zipatile is armed - Relay 2 is on (shorted/closed) for 1 second then turns off
When Binary input is on (high/12VDC) trigger alarm and send a message a push message to phone (of course it can be whatever you want it to be)
Sync and refresh and you should be good to go.
Hope this helps,
Peace
Dcrib, that is a good option to avoid additional Paradox modules and looks great!
Regarding the integration with the Paradox PRT3 and Zipatile, using USB cable, I am having some problems for detecting the alarm.
I add the new device "Paradox" (not Paradoxip) because in my case I use the USB cable, as said. The including process starts, but it never detects anything, even if it stays an hour.
My config for the PRT module is this:
Any help?
Pablo
Dcrib, that is a good option to avoid additional Paradox modules and looks great!
Regarding the integration with the Paradox PRT3 and Zipatile, using USB cable, I am having some problems for detecting the alarm.
I add the new device "Paradox" (not Paradoxip) because in my case I use the USB cable, as said. The including process starts, but it never detects anything, even if it stays an hour.
My config for the PRT module is this:
Any help?
Pablo
Hello all,
This is a short update with my "progress":
Paradox PRT3
* I have configured my PRT3 as the image above: Ascii; 9600; Enable serial port; Home automotion ON
* Selected the option "Automatic printing of Event Groups" and selected all the Event groups available.
* Selected same zones I have configured on my Paradox EVO192
Paradox EVO192
* On the system options, I have selected "Send status over the serial bus" (just in case, I don't know if it is necessary)
Previous step with the computer:
* Have connected to hyperterminal and checked I am receiving data as the detectors are tripped. For this I have followed the instructions on the Paradox PRT3 manual.
Zipatile
* Connected to the PRT3 via USB
* Followed these steps given by support on my ticket:
-------------------------
1. Create a network Paradox 2. Wait half a minute - if the creation is not finished, turn off it, sync, refresh, and after Paradox network and Paradox alarm on UI shoudl be visible 3. Add new device wizard, select Paradox, click on SN Tile (nowhere else, not on the add new network, because Paradox network already is there).Timer should get started... On Paradox device should already be created at least one zone and one partition, otherwise discovery cannot work.
-------------------------
Result
* Step 1 and 2 are fine.
* Step 3: the discovery starts and my Zipatile says "Inclusion process started", but there is no counter. And it stays looking for my alarm as long as you let it. BUT NEVER FINDS IT.
* So I am waiting now for further support help, because looks like integration is not working fine for me.
Hope this info is helpfull.
Hello all,
This is a short update with my "progress":
Paradox PRT3
* I have configured my PRT3 as the image above: Ascii; 9600; Enable serial port; Home automotion ON
* Selected the option "Automatic printing of Event Groups" and selected all the Event groups available.
* Selected same zones I have configured on my Paradox EVO192
Paradox EVO192
* On the system options, I have selected "Send status over the serial bus" (just in case, I don't know if it is necessary)
Previous step with the computer:
* Have connected to hyperterminal and checked I am receiving data as the detectors are tripped. For this I have followed the instructions on the Paradox PRT3 manual.
Zipatile
* Connected to the PRT3 via USB
* Followed these steps given by support on my ticket:
-------------------------
1. Create a network Paradox 2. Wait half a minute - if the creation is not finished, turn off it, sync, refresh, and after Paradox network and Paradox alarm on UI shoudl be visible 3. Add new device wizard, select Paradox, click on SN Tile (nowhere else, not on the add new network, because Paradox network already is there).Timer should get started... On Paradox device should already be created at least one zone and one partition, otherwise discovery cannot work.
-------------------------
Result
* Step 1 and 2 are fine.
* Step 3: the discovery starts and my Zipatile says "Inclusion process started", but there is no counter. And it stays looking for my alarm as long as you let it. BUT NEVER FINDS IT.
* So I am waiting now for further support help, because looks like integration is not working fine for me.
Hope this info is helpfull.
Hi Željko,
with a new release does it need PRT3 module for evo192 paradox to communicate over IP? I have bought Wiznet board already, and I can see pardox evo192 has serial connector. Does it wires like this Zipatile to wifi local network, wiznet board to local router, paradox evo192 serial connector to wiznet board ? or zipatile to wifi, wiznet to router, evo192 to PRT3, PRT3 to wiznet ?
Rimas
Hi Željko,
with a new release does it need PRT3 module for evo192 paradox to communicate over IP? I have bought Wiznet board already, and I can see pardox evo192 has serial connector. Does it wires like this Zipatile to wifi local network, wiznet board to local router, paradox evo192 serial connector to wiznet board ? or zipatile to wifi, wiznet to router, evo192 to PRT3, PRT3 to wiznet ?
Rimas
It is the second one. I mean you need the PRT3 because it serves as an Paradox adapter to RS232.
Zipato/Željko
It is the second one. I mean you need the PRT3 because it serves as an Paradox adapter to RS232.
Zipato/Željko
I have one more question, does zipatile send data to paradox ?, lets say window is open and there are zipato z-wave sensor on it, can i see open window in paradox system ? will it actvivate paradox siren if the system will be armed and window opens ?
I have one more question, does zipatile send data to paradox ?, lets say window is open and there are zipato z-wave sensor on it, can i see open window in paradox system ? will it actvivate paradox siren if the system will be armed and window opens ?
Hi Željko,
need some help with connecting paradox to zipatile :)
1. I have got Wiz110SR and PRT3 boards
2. Add settings to Wiz board
3. Create Paradox ip network on Zipatile
what to do next ? how to add Arm/Disarm function ? how to see if all wiring is working good ?
Hi Željko,
need some help with connecting paradox to zipatile :)
1. I have got Wiz110SR and PRT3 boards
2. Add settings to Wiz board
3. Create Paradox ip network on Zipatile
what to do next ? how to add Arm/Disarm function ? how to see if all wiring is working good ?
Well.... you should go again to add new device wizard, select Paradox, and "click" on your controller SN. If you have partitions and zones created on your Paradox alarm, they will be added to the Zipatile and you should be able to see them under device browser in the UI.
Well.... you should go again to add new device wizard, select Paradox, and "click" on your controller SN. If you have partitions and zones created on your Paradox alarm, they will be added to the Zipatile and you should be able to see them under device browser in the UI.

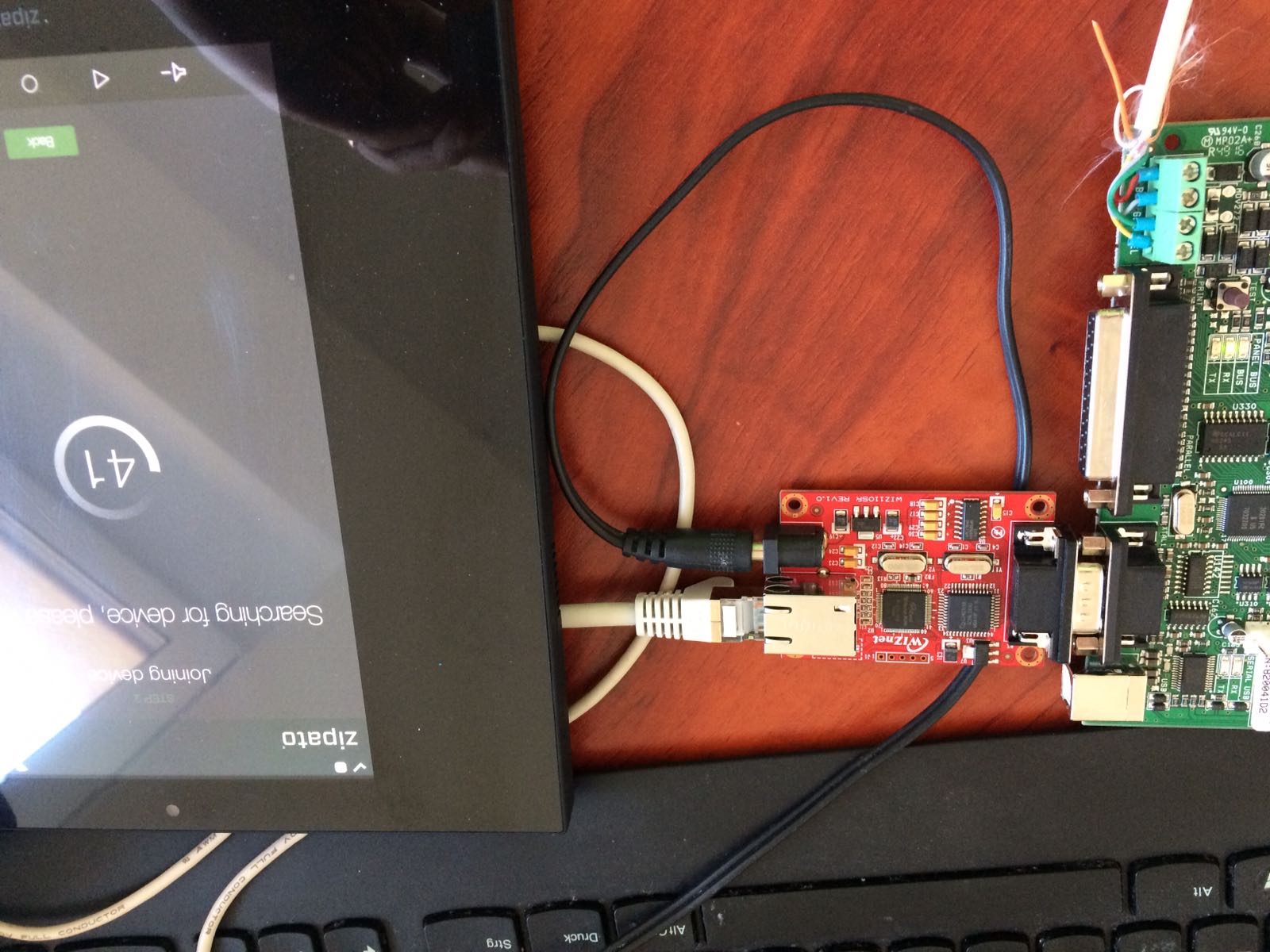

Its step 2, Joining device, after 60s Configuration failed, What can be wrong ?
On the PRT3 module only RX led blinking all the time, TX LED not blinking at all.
Its step 2, Joining device, after 60s Configuration failed, What can be wrong ?
On the PRT3 module only RX led blinking all the time, TX LED not blinking at all.
is it ok to wire like this ? prt3 with wiznet ?
is it ok to wire like this ? prt3 with wiznet ?
Have you created any zones and partition in the alarm itself? This step should add all created zones to the Zipatile
Have you created any zones and partition in the alarm itself? This step should add all created zones to the Zipatile
Everything looks fine. The discovery timeout also started what is a good sign. The only reason why it could fail that I can think of, is if you do not have any zones created on the alarm itself.
Everything looks fine. The discovery timeout also started what is a good sign. The only reason why it could fail that I can think of, is if you do not have any zones created on the alarm itself.
Yes, alarm is working for a long time, it has partition, and about 20 zones.
How can I see if wiz board is working ?
Yes, alarm is working for a long time, it has partition, and about 20 zones.
How can I see if wiz board is working ?
Partition and Zones are created on EVO192 and ZX8 extension board, but none on PRT3 module, does it need to be some created on PRT3 too ?
Partition and Zones are created on EVO192 and ZX8 extension board, but none on PRT3 module, does it need to be some created on PRT3 too ?
Which firmware are you running on? Try to run 1.2.24. It has been tested OK with that firmware. If you need help about upgrade or downgrade, please contact support.
Which firmware are you running on? Try to run 1.2.24. It has been tested OK with that firmware. If you need help about upgrade or downgrade, please contact support.
If the ethernet port is blinking on WIZNet, it should mean the board is OK.
If the ethernet port is blinking on WIZNet, it should mean the board is OK.
Firmware 1.2.29, Orange is blinking, green led is not blinking on Wiz board. IP address of wiz board is 192.168.1.80 with gateway 192.168.1.1, port 5000. Look like, that wiz board is not requesting any data from PRT3, or PRT3 is not transmitting any data, because TX is not blinking at all.
Firmware 1.2.29, Orange is blinking, green led is not blinking on Wiz board. IP address of wiz board is 192.168.1.80 with gateway 192.168.1.1, port 5000. Look like, that wiz board is not requesting any data from PRT3, or PRT3 is not transmitting any data, because TX is not blinking at all.
I would suggest you to try 1.2.24 firmware. I remember there was an issue with 1.2.28 and 1.2.29 was not tested yet with Paradox.
I would suggest you to try 1.2.24 firmware. I remember there was an issue with 1.2.28 and 1.2.29 was not tested yet with Paradox.
OK, trying to downgrade :)
OK, trying to downgrade :)
I have only Official 1,2,29 , Previosly 1,1,39 (very old) and beta version. How I can get 1,1,24 ?
I have only Official 1,2,29 , Previosly 1,1,39 (very old) and beta version. How I can get 1,1,24 ?
its an new Zipatile, today unpacked and update to current version.
its an new Zipatile, today unpacked and update to current version.
As I said, please contact support to assist you with that
As I said, please contact support to assist you with that
Replies have been locked on this page!
