Zipato 4 in 1 Multisensor - BIT's meaning
Need Answer
Hello,
I have Zipato 4 in 1 Multisensors.
On the Configuration section, there are BITs for settings. I could not find enough/understandable explanation form installition guides (V1.2 , V1.3, V1.4, V1.5).
Could you please give information?
Operation mode : BIT 1-2-3-4-5
Multisensor function switch : BIT 0-1-2-3-4-5
Customer switch : BIT 1-2-3-4
Also DIP switch : 1-2
The same question
No connection
Real-time notifications may not work
Hello, To understand the configuration, you must transform the value into binary. This makes it possible to count with a number of several BITs. The value is encoded in 8 bits: bit 0 to 7
Example: For parameter 5 (mode operation) If the value is 28 or 00011100
bit0=0 Bit1=0 bit2=0 bit3=1 bit4=1 bit5=1 bit6=0 bit7=0
For parameter 6 (multisensor switch function) If the value is 8 or 00001000
bit0=0 Bit1=0 bit2=0 bit3=0 bit4=1 bit5=0 bit6=0 bit7=0
see the manual for parameter 5 or 6.
For the DIP switch, it is the micro switch that is on the circuit of Zipato 4 in 1. There is 2 switch M1 and M2 with ON or OFF position.
Hello, To understand the configuration, you must transform the value into binary. This makes it possible to count with a number of several BITs. The value is encoded in 8 bits: bit 0 to 7
Example: For parameter 5 (mode operation) If the value is 28 or 00011100
bit0=0 Bit1=0 bit2=0 bit3=1 bit4=1 bit5=1 bit6=0 bit7=0
For parameter 6 (multisensor switch function) If the value is 8 or 00001000
bit0=0 Bit1=0 bit2=0 bit3=0 bit4=1 bit5=0 bit6=0 bit7=0
see the manual for parameter 5 or 6.
For the DIP switch, it is the micro switch that is on the circuit of Zipato 4 in 1. There is 2 switch M1 and M2 with ON or OFF position.

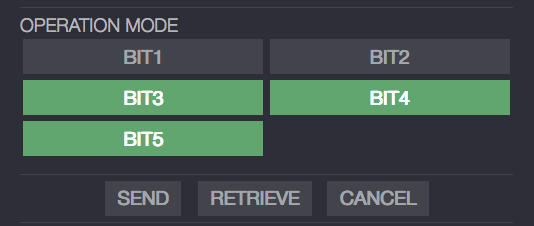

This was very useful Arguimbau, but where can I find the value? In the attached screenshot you can see the configurations of a Zipato Multisensor Quad. Parameter 5 / Configuration option 5 is the the section called "OPERATION MODE". Here I find Bit 1 to 5, but I can´t find the value corresponding to a 8 bit streng. Where do i find this?
This was very useful Arguimbau, but where can I find the value? In the attached screenshot you can see the configurations of a Zipato Multisensor Quad. Parameter 5 / Configuration option 5 is the the section called "OPERATION MODE". Here I find Bit 1 to 5, but I can´t find the value corresponding to a 8 bit streng. Where do i find this?
Hello,

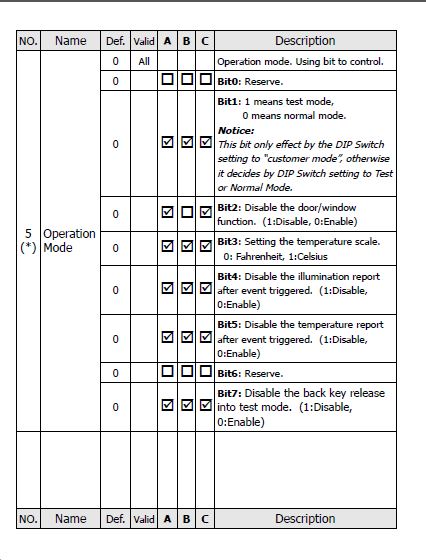

in the manual of the PST02 there is the programming table of the configuration 5.
bit 0 not used
bit 1 test mode or normal mode
bit 2 disable door / windows function
bit 3 fahrenheit / celsius
bit 4 disable illumination report
bit 5 disable temperature report
bit 6 not used
bit 7 disable the back key release into test mode
the value of each bit is 0 or 1
if you only have bit 1 to 5 you have to add bit 0, 6 and 7.
if :
bit 0 = 0 not used
bit 1 = 0 normal mode
bit 2 = 0 door / windows function is enable
bit 3 = 1 celsius enable
bit 4 = 1 illumination report disable after event triggered
bit 5 = 1 temperature report disable after event triggered
bit 6 = 0 not used
bit 7 = 1 disable the key release on test mode
the value of parameter 5 is 10111000 or 184
the bit 0 is at right and the bit 7 is at left. sorry, but I reversed before.
Hello,
in the manual of the PST02 there is the programming table of the configuration 5.
bit 0 not used
bit 1 test mode or normal mode
bit 2 disable door / windows function
bit 3 fahrenheit / celsius
bit 4 disable illumination report
bit 5 disable temperature report
bit 6 not used
bit 7 disable the back key release into test mode
the value of each bit is 0 or 1
if you only have bit 1 to 5 you have to add bit 0, 6 and 7.
if :
bit 0 = 0 not used
bit 1 = 0 normal mode
bit 2 = 0 door / windows function is enable
bit 3 = 1 celsius enable
bit 4 = 1 illumination report disable after event triggered
bit 5 = 1 temperature report disable after event triggered
bit 6 = 0 not used
bit 7 = 1 disable the key release on test mode
the value of parameter 5 is 10111000 or 184
the bit 0 is at right and the bit 7 is at left. sorry, but I reversed before.

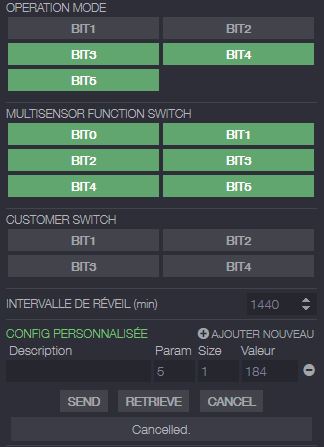

Thanks. I just don´t understand how I actually program this. The only thing I understand I can do under configuration is to toggle these green/grey bit-buttons on and off (see attached). I interpret green to be on, but I´m not sure. When I klick Send or Retrieve I get a number in return. Eg. how do I change bit3 from 0 to 1?
Thanks. I just don´t understand how I actually program this. The only thing I understand I can do under configuration is to toggle these green/grey bit-buttons on and off (see attached). I interpret green to be on, but I´m not sure. When I klick Send or Retrieve I get a number in return. Eg. how do I change bit3 from 0 to 1?
