Zipabox Serial Module - Connecting and installing

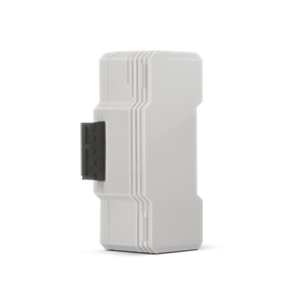

Zipato Serial Module enables Zipabox to easily interconnect with an existing security alarm system, such as DSC or PARADOX, or any other system with RS232 or RS485 communication interface (e.g. air conditioners). Number of external systems supported by Zipato is increasing all the time, and Zipato is providing SDK to all the parties interested in supporting various protocols. It also includes USB port for connecting 3G USB stick for backup internet connection so your Zipabox never loses connection with the cloud.

Connecting and installing the Serial Module:
1. Disconnect Zipabox from power supply

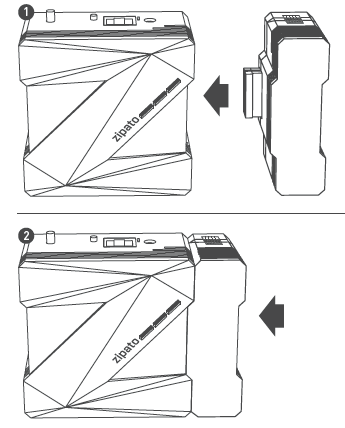

2. Align connector of Serial Module to expansion Slot 2 of Zipabox (or to module connected into Slot 2)
3. Join module and Zipabox together until gap between them is completely closed
4. Connect Zipabox to power power supply

Notice: This device is meant for mounting only with Zipabox.
